Type D CNG Compressors

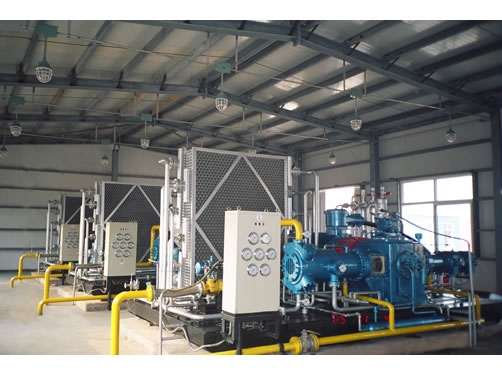

General Description Available with capacity between 700 and 4500Nm3/h, the type D CNG compressor is ideal for medium and large sized CNG filling stations as well as CNG mother stations. As a kind of horizontally symmetrical reciprocating compressor,it is mainly composed of the compression unit, anti-explosive electric motor, cooling unit, lubrication unit, internal connection pipeline, safety valve, and the blow-down valve. All these components are skid-mounted on a common base, thus facilitating installation and transportation. The PLC control cabinet is usually positioned inside the control room of CNG filling stations so as to realize remote control on the CNG compressor.

Features:

Our compressors feature large capacity, low vibration, high efficiency, aesthetical design, and compact structure. Also, they support long term continuous operation due to reliable and stable performance. User-friendly designed, they are convenient for maintenance, and require low operation cost. Their parts are available at very competitive prices. The PLC control system ensures higher safety and stability.

Advantages

1. We have been in compressor manufacturing industry for over four decades, and up to now, we have supplied over 2500 sets of compressors for national and international clients. We have won 40% of the market share in China.
2. Due to our powerful development capacity as well as our close cooperation with China famous universities such as Xi'an Jiaotong University, Sichuan University, Sichuan University of Science and Engineering, etc., we have achieved a leading position in compressor manufacturing technologies. In the filed for CNG filling stations, we were the earliest Chinese developer of horizontally symmetrical type D CNG compressor for mother stations and type XD CNG compressor for daughter stations.
3. We operate in strict conformation with TQM (Total Quality Management), TPM (Total Productive Management), and TPS (Toyota Production System) management systems which are widely used by American, Japanese and Korean enterprises.
4. Before leaving factory, all of our compressor has to undergo heavy load tests to avoid any possible failures. This is one of the reasons why our range of compression equipment has reliable performance.
5. Our gas compressors are available with performance test reports provided by a third party, as well as pre-delivery tests such as SGS and OMIC. UAccording to clients' specific requirement, we can also provide ABS and CCS certifications.
6. Our compressor systems are equipped with key components of international or domestic famous brands to offer enhanced reliability. By now, we have established cooperation with ParKer (American), HOERBIGER (German), DK-LOK (South Korean), mercer (American), STAUFF (German), Siemens (German), Jiamusi Electric Machine Company Limited, Wuxi Xi Shan Anda Explosion-proof Electrical Equipment Co., Ltd., Nanyang Explosion Protection Group Co., Ltd., Xi Chi Electric Co., Ltd., and Sichuan Injet Electric Co., Ltd. The partnership with national and international industry leaders provides us great advantages in market competition.
7. We have a complete after sales network in mainland China, covering all provinces and areas. Also, we have built after sales centers in countries such as Thailand, Pakistan, Uzbekistanbekistan and so on. Chinese or local personnel are available for equipment maintenance and repairing. Technical supports and assistance in Chinese, English, Russia, etc. are available. Free maintenance and operation trainings are provided as well.

Technical Specifications

Range: 700-4500 Nm3/hr
Motor power: 160-355kw
Inlet pressure: ≥0.1Mpa
Motor: Electric motor driven/gas engine driven
Cooling model: water or air cooled
Stages:2- 4 stage compression
Skid: Compact skid design

Series No	Compressor model	Inlet Pressure (MPa)	Motor Power (kW)	Capacity (Nm3/h)	Rotation Speed (rpm)	Stroke (mm)	Compression Stage
1	D-4.2/2-250Ⅱ	0.20	160	700	980	140	4_Stage
2	D-4.8/2-250	0.20	185	800	590	180	4_Stage
3	D-5.4/2-250Ⅰ	0.20	220	900	740	180	4_Stage
4	D-6/2-250Ⅰ	0.20	250	1000	740	180	4_Stage
5	D-6.8/2-250	0.20	280	1100	740	180	4_Stage
6	D-3.4/3-250	0.30	160	750	740	140	4_Stage
7	D-3.7/3-250Ⅱ	0.30	185	800	740	140	4_Stage
8	D-4/3-250	0.30	200	900	590	180	4_Stage
9	D-4.5/3-250Ⅰ	0.30	220	1000	590	180	4_Stage
10	D-5.4/3-250Ⅱ	0.30	250	1100	740	180	4_Stage
11	D-5.9/3-250	0.30	280	1200	740	180	4_Stage
12	D-2.9/4-250Ⅰ	0.40	160	800	740	140	4_Stage
13	D-3.25/4-250	0.40	185	900	740	140	4_Stage
14	D-3.6/4-250	0.40	200	1000	590	180	4_Stage
15	D-4/4-250	0.40	220	1100	590	180	4_Stage
16	D-4.3/4-250Ⅰ	0.40	250	1200	590	180	4_Stage
17	D-4.7/4-250Ⅰ	0.40	280	1300	590	180	4_Stage
18	D-5.4/4-250Ⅰ	0.40	315	1500	740	180	4_Stage
19	D-2.9/5-250	0.50	185	950	590	180	4_Stage
20	D-3.3/5-250	0.50	200	1100	590	180	4_Stage
21	D-3.6/5-250	0.50	220	1200	590	180	4_Stage
22	D-3.9/5-250	0.50	250	1300	590	180	4_Stage
23	D-4.5/5-250	0.50	280	1400	740	180	4_Stage
24	D-2.4/6-250	0.60	160	900	740	140	4_Stage
25	D-2.6/6-250	0.60	185	1000	590	180	4_Stage
26	D-3/6-250	0.60	200	1100	980	140	4_Stage
27	D-3.6/6-250	0.60	250	1400	590	180	4_Stage
28	D-3.9/6-250	0.60	280	1500	590	180	4_Stage
29	D-4.4/6-250	0.60	315	1700	740	180	4_Stage
30	D-1.6/8-250Ⅰ	0.80	132	800	590	140	4_Stage
31	D-2.2/8-250	0.80	185	1100	740	140	4_Stage
32	D-2.4/8-250	0.80	200	1200	590	180	4_Stage
33	D-2.6/8-250	0.80	220	1300	590	180	4_Stage
34	D-3/8-250	0.80	250	1500	590	180	4_Stage
35	D-3.4/8-250	0.80	280	1700	590	180	4_Stage
36	D-3.8/8-250	0.80	315	1900	740	180	4_Stage
37	D-1.65/10-250	1.00	160	1000	590	140	4_Stage
38	D-1.95/10-250Ⅰ	1.00	185	1200	740	140	4_Stage
39	D-2.1/10-250	1.00	200	1250	590	180	4_Stage
40	D-2.3/10-250	1.00	220	1400	590	180	4_Stage
41	D-2.6/10-250	1.00	250	1600	590	180	4_Stage
42	D-2.9/10-250	1.00	280	1700	590	180	4_Stage
43	D-3.3/10-250	1.00	315	2000	740	180	4_Stage
44	D-1.4/12-250	1.20	160	1000	740	140	3_Stage
45	D-1.7/12-250	1.20	185	1200	740	140	3_Stage
46	D-1.8/12-250	1.20	200	1300	590	180	3_Stage
47	D-1.95/12-250	1.20	220	1400	590	180	3_Stage
48	D-2.5/12-250Ⅲ	1.20	280	1800	590	180	4_Stage
49	D-2.9/12-250	1.20	315	2100	740	180	4_Stage
50	D-1.5/14-250	1.40	185	1200	740	140	3_Stage
51	D-1/16-250	1.60	132	1000	740	140	3_Stage
52	D-1.3/16-250	1.60	160	1200	740	140	3_Stage
53	D-1.4/16-250	1.60	185	1300	740	140	3_Stage
54	D-1.7/16-250Ⅰ	1.60	220	1600	590	180	3_Stage
55	D-2/16-250	1.60	250	1800	590	180	3_Stage
56	D-2.5/16-250	1.60	315	2200	590	180	4_Stage
57	D-1.1/20-250	2.00	160	1300	740	140	3_Stage
58	D-1.3/20-250	2.00	185	1500	740	140	3_Stage
59	D-1.4/20-250	2.00	200	1600	740	140	3_Stage
60	D-1.5/20-250	2.00	220	1700	590	180	3_Stage
61	D-1.7/20-250	2.00	250	2000	740	180	3_Stage
62	D-1.9/20-250	2.00	280	2200	740	180	3_Stage
63	D-2/20-250	2.00	315	2400	740	180	3_Stage
64	D-0.84/25-250	2.50	132	1200	590	140	3_Stage
65	D-0.98/25-250	2.50	160	1400	590	140	3_Stage
66	D-1.1/25-250	2.50	185	1600	740	140	3_Stage
67	D-1.25/25-250	2.50	200	1800	590	180	3_Stage
68	D-1.3/25-250	2.50	220	1900	590	180	3_Stage
69	D-1.5/25-250	2.50	250	2200	590	180	3_Stage
70	D-1.6/25-250Ⅰ	2.50	280	2300	740	180	3_Stage
71	D-1.88/25-250	2.50	315	2700	740	180	3_Stage
72	D-1.3/30-250	3.00	250	2200	590	180	2_Stage
73	D-1.45/30-250	3.00	280	2400	590	180	2_Stage
74	D-1.75/30-250	3.00	315	3000	740	180	2_Stage
75	D-0.55/35-250	3.50	110	1100	740	140	2_Stage
76	D-0.65/35-250	3.50	132	1300	740	140	2_Stage
77	D-0.75/35-250	3.50	160	1500	740	140	2_Stage
78	D-0.9/35-250	3.50	185	1800	740	140	2_Stage
79	D-0.95/35-250	3.50	200	1900	740	140	2_Stage
80	D-1.25/35-250	3.50	250	2400	590	180	2_Stage
81	D-1.3/35-250Ⅱ	3.50	280	2600	740	180	2_Stage
82	D-1.55/35-250Ⅰ	3.50	315	3100	740	180	2_Stage
83	D-0.75/40-250	4.00	160	1700	740	140	2_Stage
84	D-0.9/40-250	4.00	185	2100	740	140	2_Stage
85	D-1.2/40-250	4.00	250	2600	740	180	2_Stage
86	D-1.45/40-250	4.00	315	3300	740	180	2_Stage
87	D-1.15/50-250	5.00	280	3200	590	180	2_Stage
88	D-1.2/60-250	6.00	280	4000	590	180	2_Stage
89	D-1.1/70-250	7.00	280	4200	590	180	2_Stage
90	D-1.1/75-250	7.50	280	4500	590	180	2_Stage
